Liebherr LTM 1100-4.2
PEC

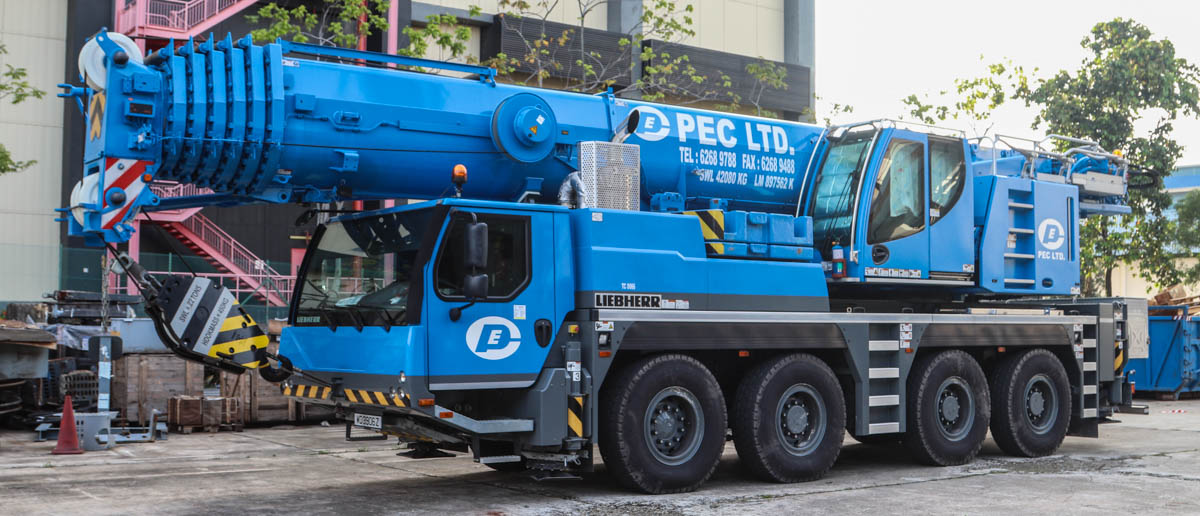

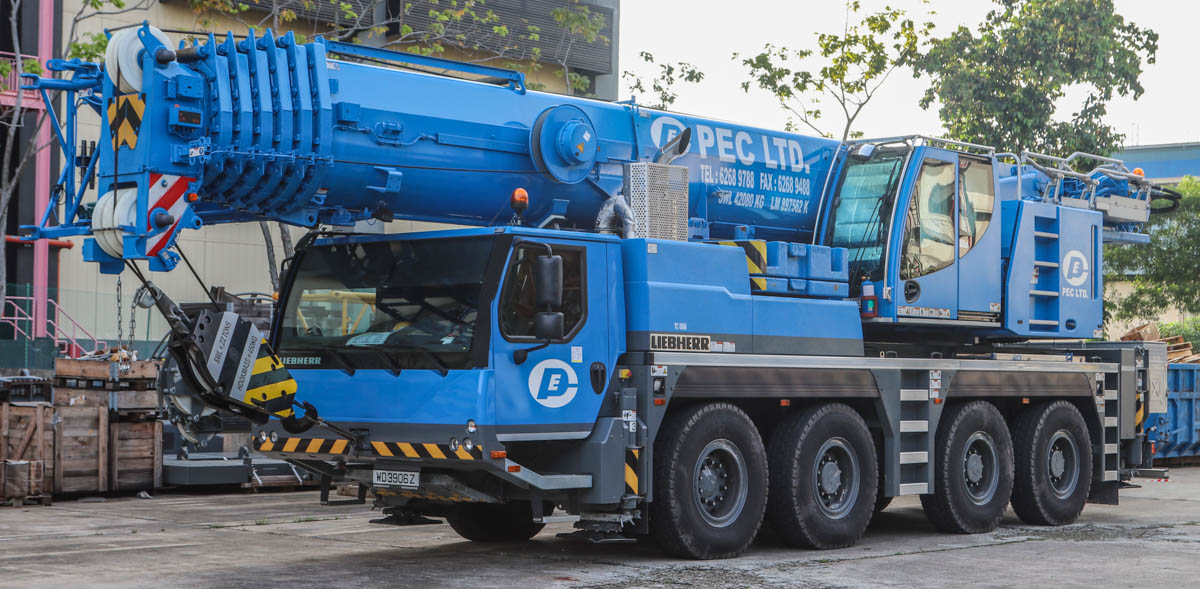

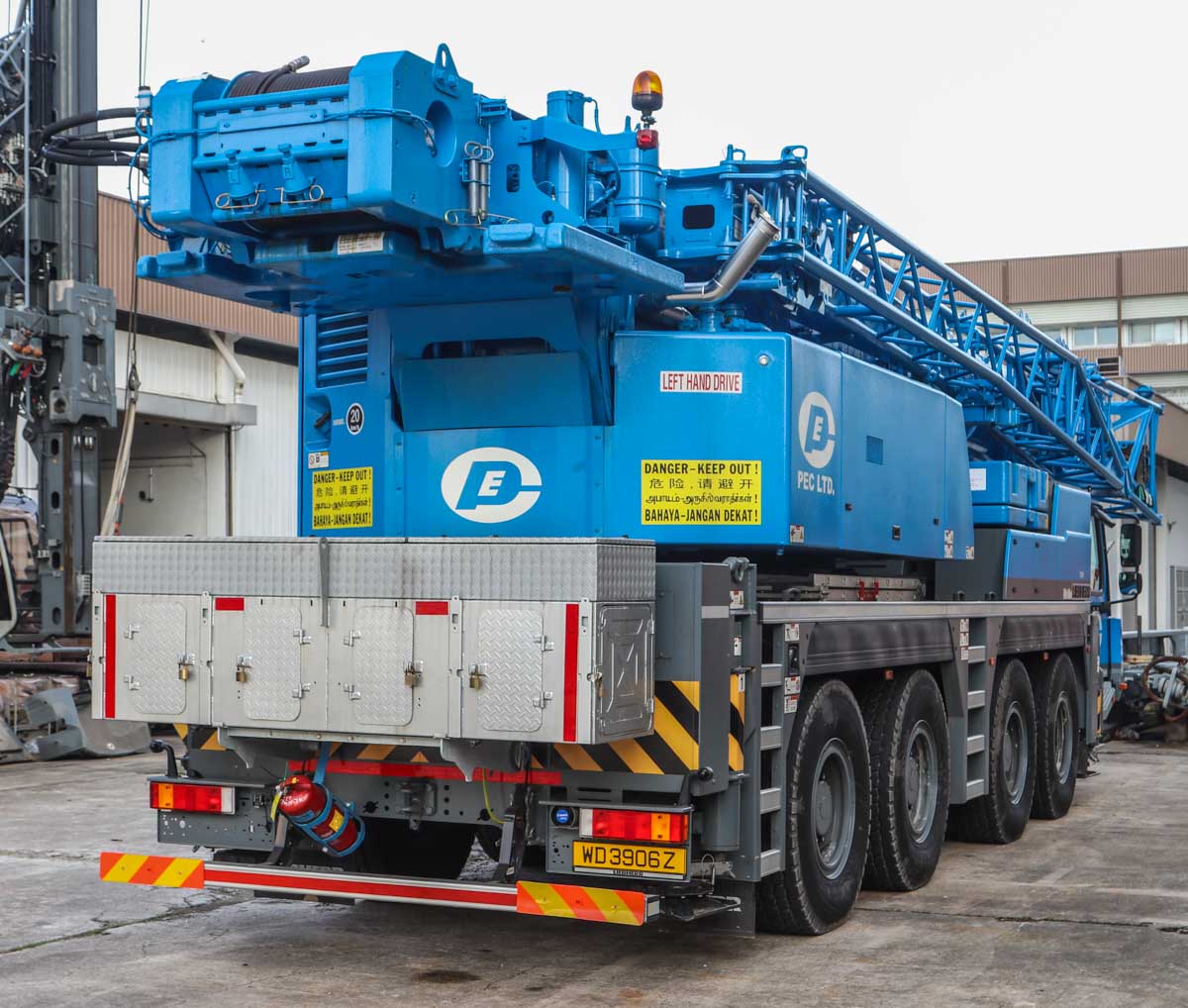

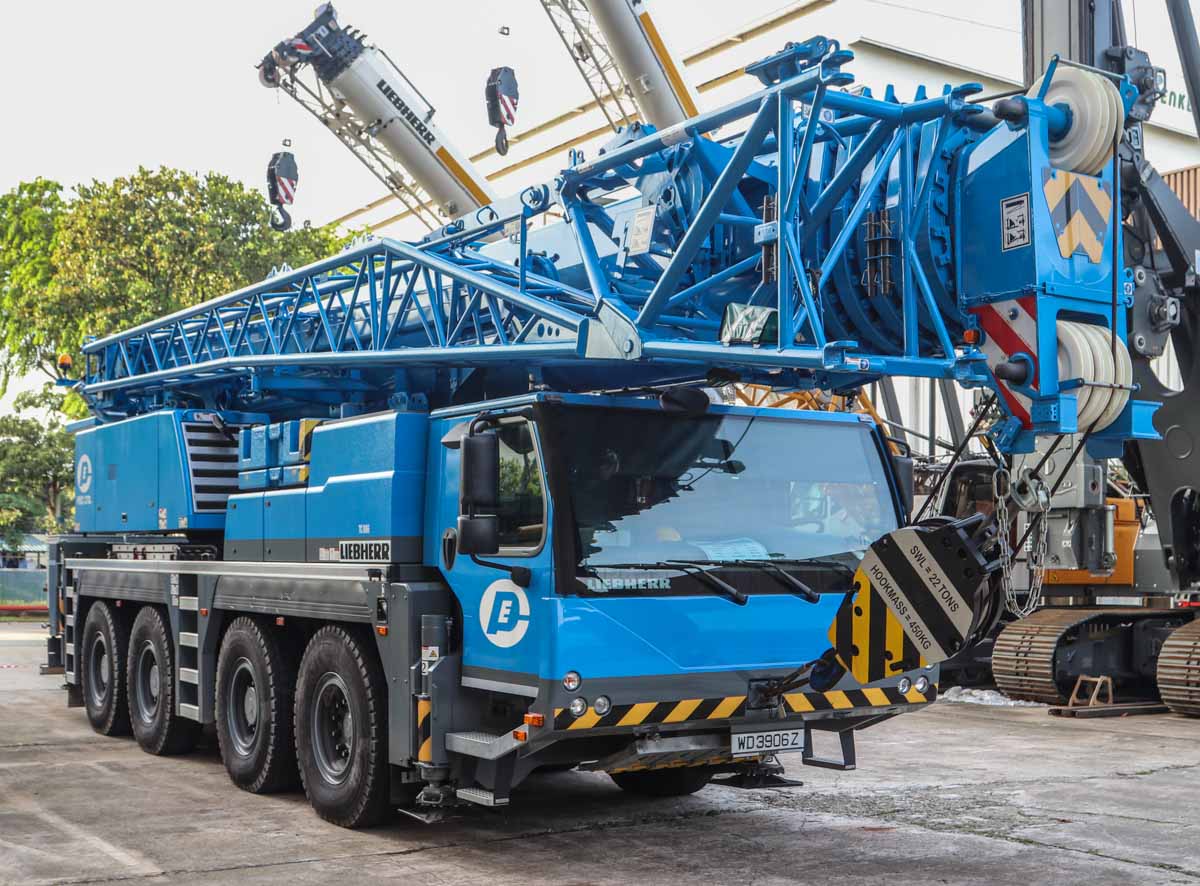

This beautiful Liebherr LTM 1100-4.2 belongs to PEC from Singapore (SG). PEC is an industrial service provider with its own crane fleet. This crane was built in 2021.

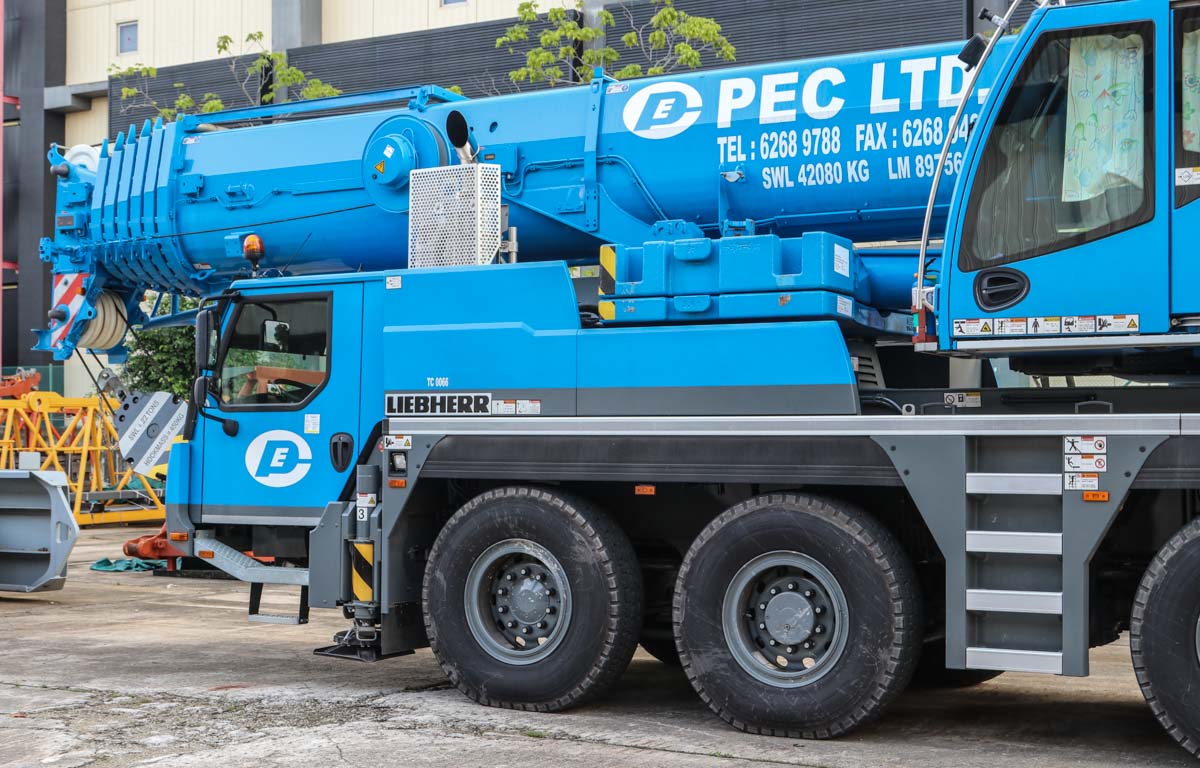

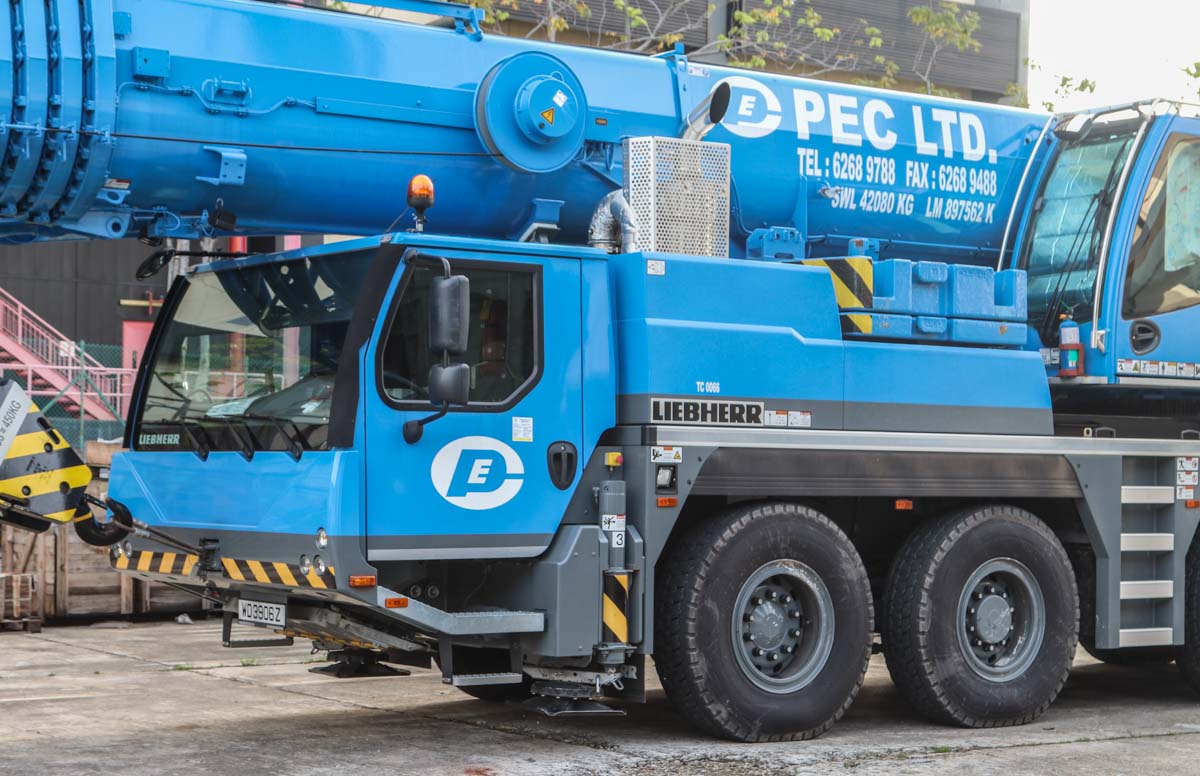

It is a 100-tonne crane mounted on a 4-axle carrier. The carrier is powered by a Liebherr 6-cylinder diesel engine with an output of 350 kW (476 hp). Axles 2 to 4 are driven, and all axles are steerable.
In total, this crane carries 11.2 tonnes of counterweight, of which 9.7 tonnes are transported on the carrier. The outrigger base measures 8.61 x 7.01 metres, or half 8.61 x 5.01 metres.
In transport configuration, this crane is 14.01 metres long, 2.75 metres wide, and 4 metres high. The transport weight of the crane is approximately 62 tonnes.

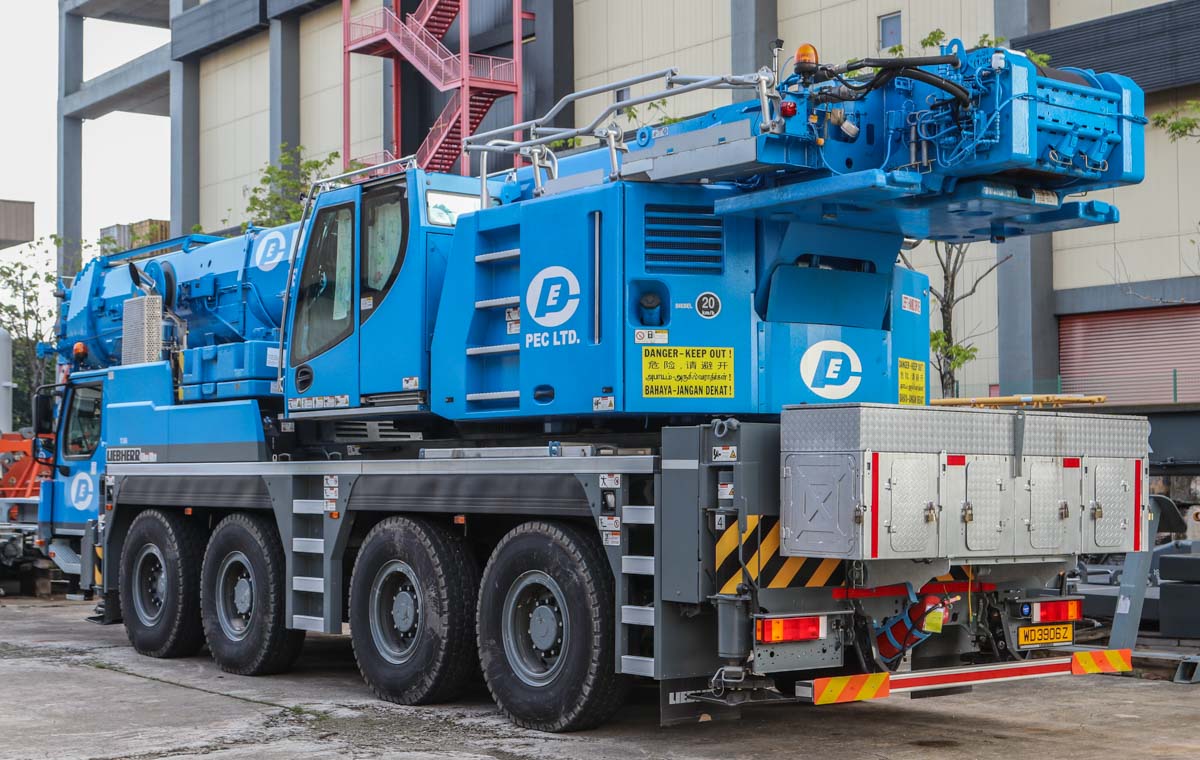

The upper structure is powered by a Liebherr 4-cylinder diesel engine with an output of 129 kW (175 hp). The diesel engine drives two hydraulic pumps to operate the crane functions.

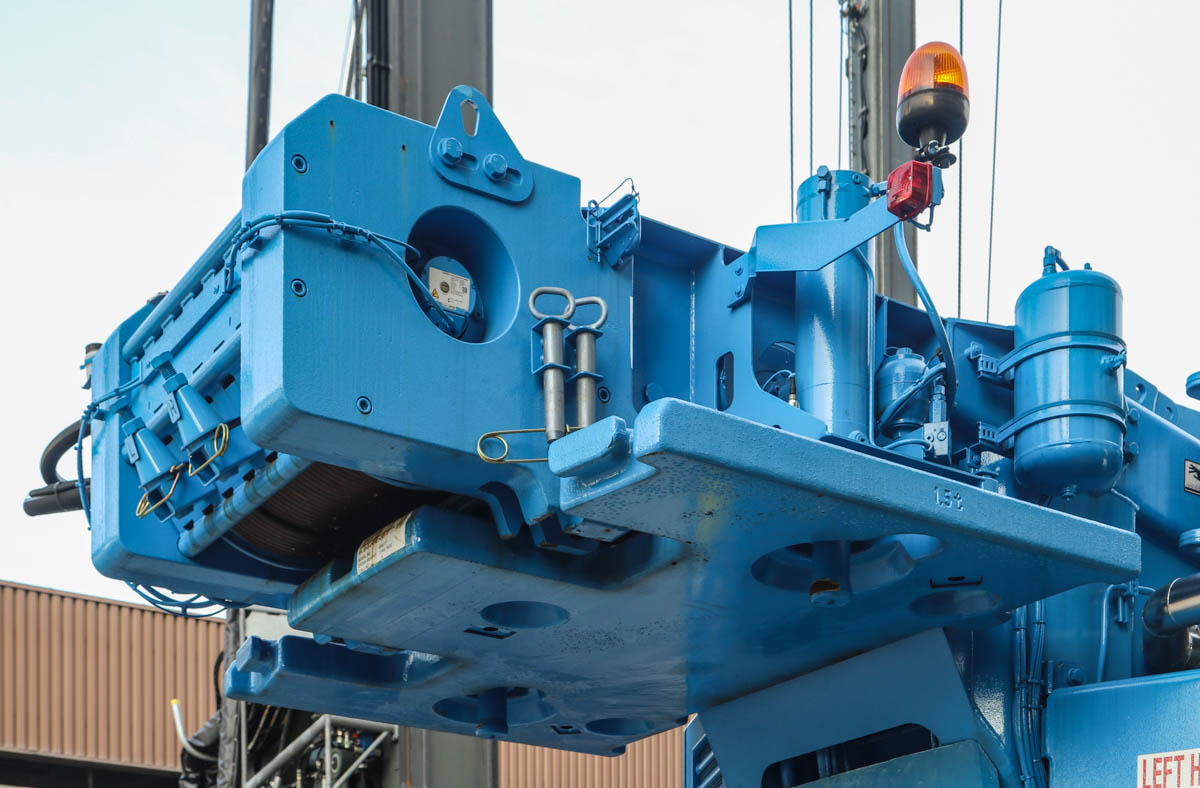

A counterweight slab of 1.5 tonnes remains mounted on the upper structure. The total counterweight weighs 25.7 tonnes and has a slewing radius of 4.11 metres. This crane is equipped with two hoist winches; the second optional winch is not in use here.

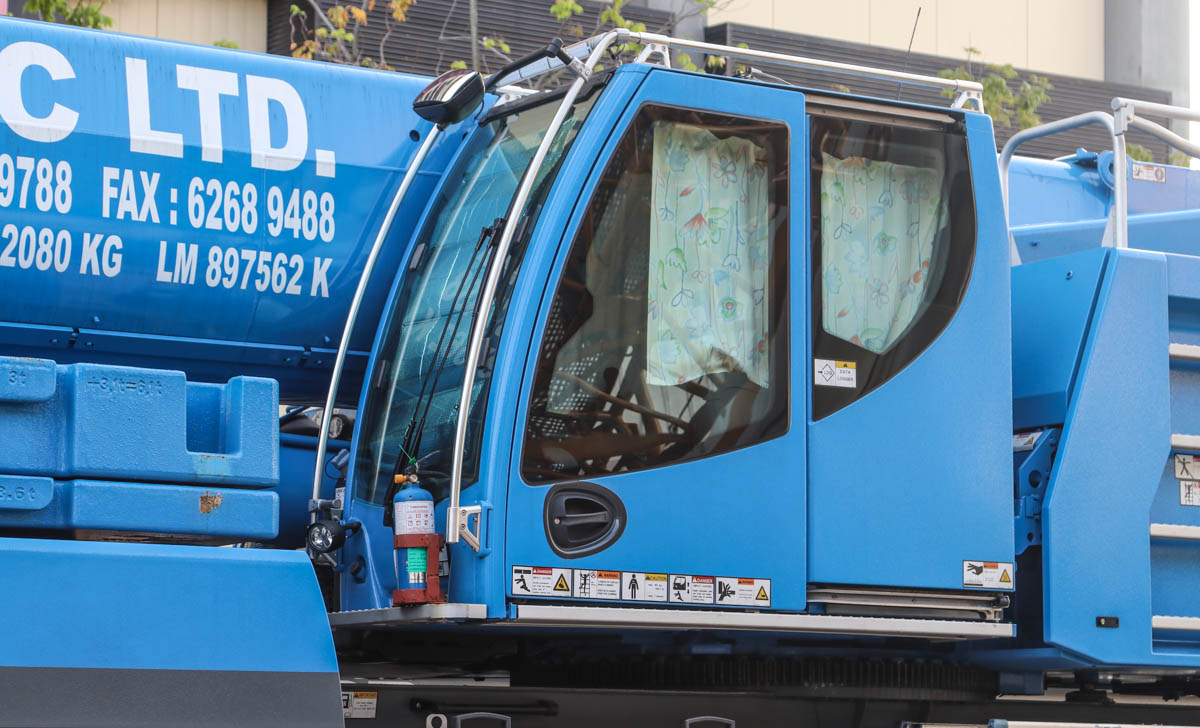

The cab on the upper structure can be tilted by 20 degrees.

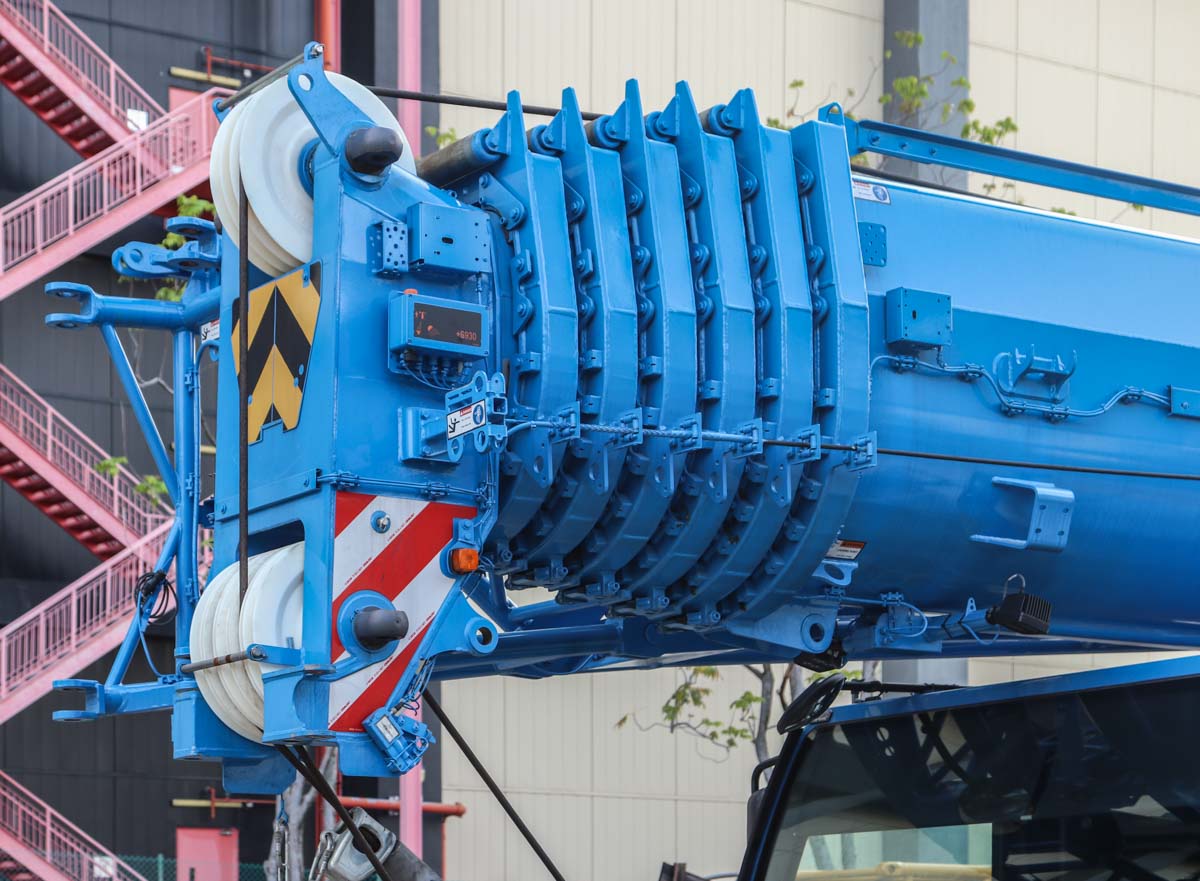

The main boom has a base length of 11.5 metres and extends six times to a maximum length of 60 metres. Optionally, the main boom can be extended by a folding jib measuring 10.8 - 19 metres. The jib can be mounted to the main boom at angles of 0, 20, or 40 degrees.
A very fine crane from PEC!
